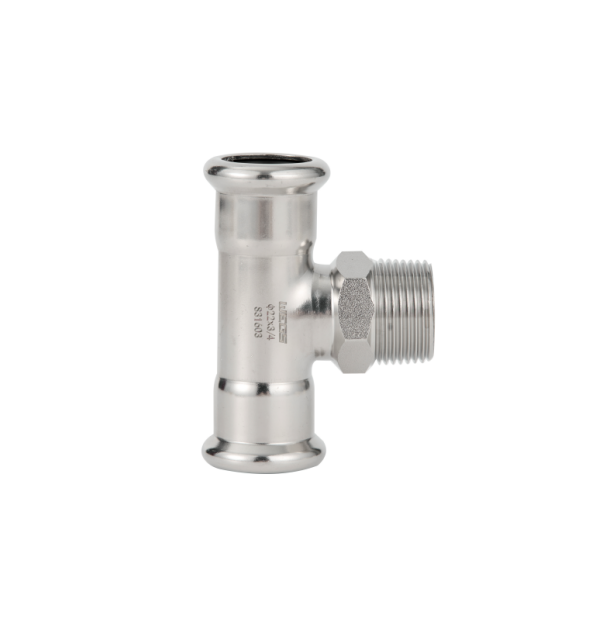

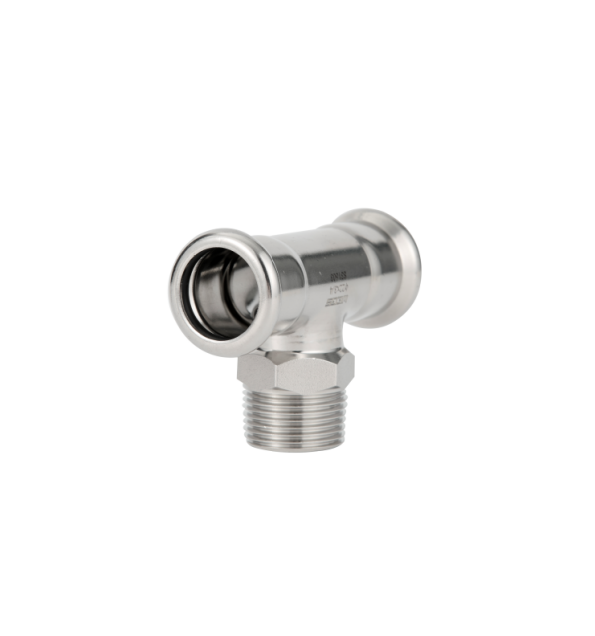

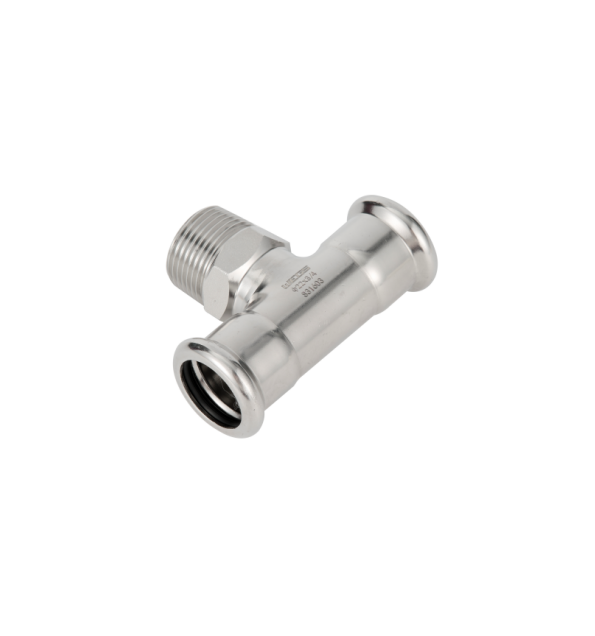

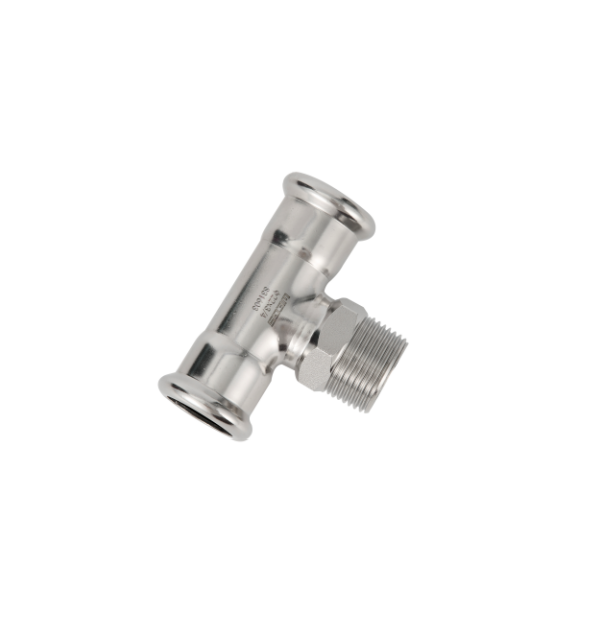

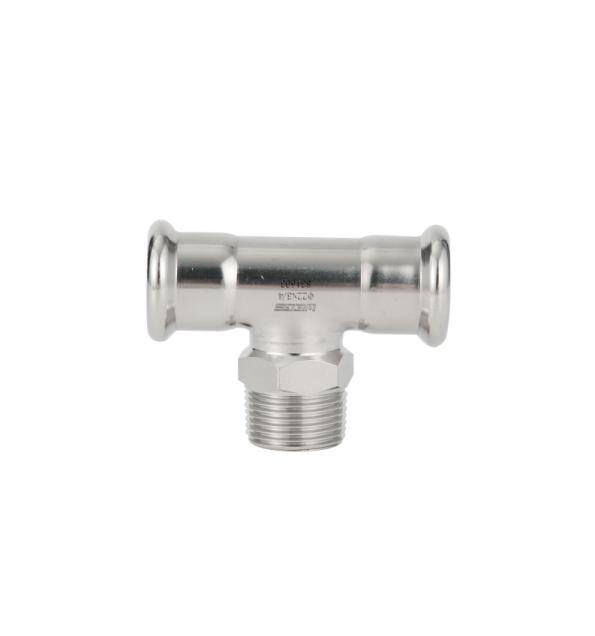

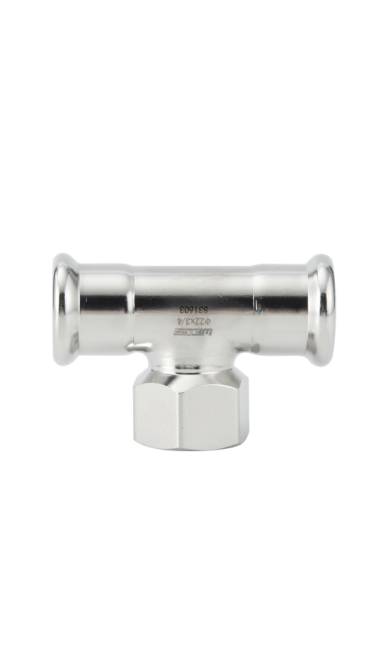

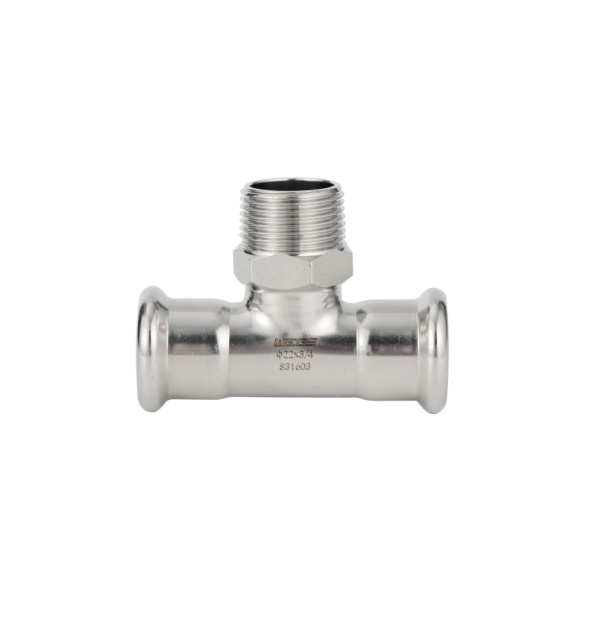

For pipe wiring, when encountering nodes or turning corners in the wall, the middle branch pipe is a male/female/external threaded fitting that can be connected to external parts, and the two ends are M profile press fittings with the same nominal diameter.
NO. | Diameter/mm | Thickness/ mm |
1 | 15×1/2" | 1.5 |
2 | 15×3/4" | 1.5 |
3 | 18×1/2" | 1.5 |
4 | 18×3/4" | 1.5 |
5 | 22×1/2" | 1.5 |
6 | 22×3/4" | 1.5 |
7 | 28×1/2" | 1.5 |
8 | 28×3/4" | 1.5 |
9 | 28×1 | 1.5 |
10 | 35×1/2" | 1.5 |
11 | 35×3/4" | 1.5 |
12 | 32.0×1 | 1.5 |
13 | 35×11/4" | 1.5 |
14 | 42×1/2" | 1.5 |
15 | 42×3/4" | 1.5 |
16 | 42×1 | 1.5 |
17 | 42×11/4" | 1.5 |
18 | 42×11/2" | 1.5 |
19 | 54×1/2" | 1.5 |
20 | 54×3/4" | 1.5 |
21 | 54×1 | 1.5 |
22 | 54×11/4" | 1.5 |
23 | 54×11/2" | 1.5 |
24 | 54×2 | 1.5 |
